Getting illuminated signage right on the production floor remains a constant battle. You print a graphic that looks perfect under the shop lights, but the moment you load it into the light box, the colors wash out and lose all their punch. If you try to compensate by dumping more ink onto the substrate, the unlit graphic turns into a dark, muddy mess during the day. This day/night dilemma causes massive material waste, forces endless reprints, and wrecks brand consistency across retail rollouts.
Solving this density calibration issue means aligning your RIP software settings, ink limits, and media characteristics. We need to look closely at how front-printed media behaves under direct illumination compared to standard reflective substrates. By understanding the physical interaction between the light source, the ink layer, and the film coating, production teams can eliminate the guesswork and produce graphics that hit the target Delta E tolerances 24 hours a day.
Illumination Physics: Backlighting effectively halves the perceived color density of a print; compensating requires precise multi-layer ink application or specialized RIP profiles.
Media Selection Matters: The microporous coating on direct print illuminated display media dictates ink absorption limits, directly impacting the maximum achievable density before pooling or pinholing occurs.
Day/Night Calibration: Optimal front-lit printing requires a calculated compromise between unlit contrast and illuminated vibrancy, often necessitating custom ICC profiling.
Risk Mitigation: Over-saturating dark colors to compensate for backlighting often results in blocked shadows (appearing pure black) when lit; controlled contrast adjustments are more effective than simply increasing ink volume.
Defining correct color density in a light box environment requires objective measurement. You cannot rely on visual estimation. Success means maintaining brand-accurate Delta E values under specific Lux levels emitted by the display hardware. The graphic must render accurate hues when the internal LEDs are active, without looking like a heavy, oversaturated mistake when the power is cut. Achieving this balance requires a deep understanding of how light interacts with printed ink films.
The core issue stems from the fundamental difference between transmissive and reflective light behavior. In standard frontlit printing on opaque vinyl or paper, ambient light passes through the ink layer, reflects off the white substrate, and passes back through the ink to the viewer's eye. This double-pass phenomenon naturally builds visual density because the light is filtered by the colorants twice.
Transmissive backlighting pushes light through the ink layer only once. Because the light travels directly from the LEDs, through the substrate, through the ink, and into the viewer's eye without bouncing back, the perceived color density is effectively halved. This structural physics difference causes transmissive prints to require up to 200 to 300 percent higher ink density to prevent a washed-out appearance when illuminated.
This creates the double-strike dilemma. Standard frontlit ICC profiles fail in light boxes because they restrict ink volume to prevent pooling on reflective media. Conversely, simply doubling the ink limits in the RIP software can ruin the unlit appearance. The print looks muddy, dark, and heavily oversaturated during the day because the ambient light is now filtering through an excessively thick ink layer.
Lighting Condition | Light Path | Ink Filtration | Perceived Density Impact | Required Ink Volume Adjustment |
|---|---|---|---|---|
Reflective (Ambient) | Light hits print, bounces off substrate, returns to eye | Double-pass (filtered twice) | Naturally high density | Standard limits (100-150%) |
Transmissive (Backlit) | Light travels from behind, through substrate and ink to eye | Single-pass (filtered once) | Density appears halved | High limits (200-300%) |

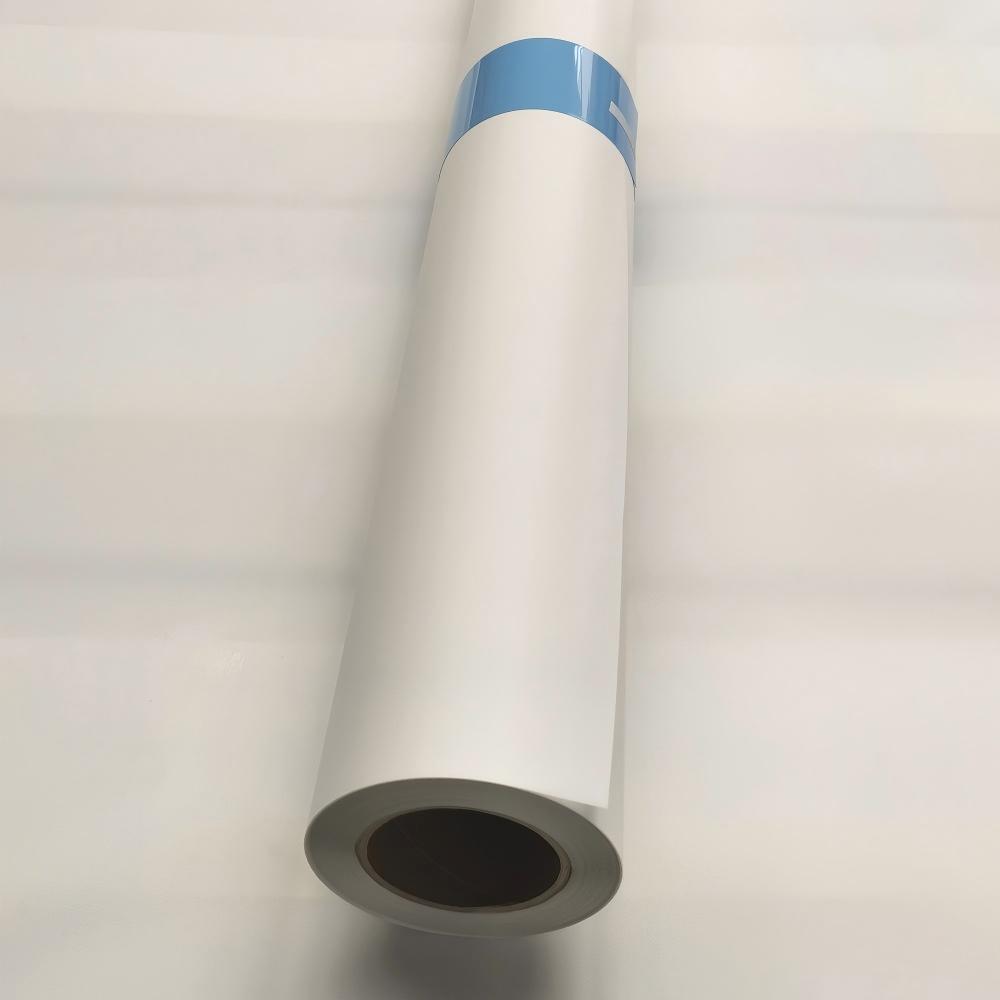

The structural composition of Front Print Backlit Film is engineered specifically for this single-pass light behavior. These films typically feature a heavy PET (polyethylene terephthalate) base, a diffusion layer on the back, and a specialized microporous ink-receiving layer on the front surface. The rear diffusion layer scatters the raw LED light evenly across the panel, eliminating hot spots and banding from the light source. The front coating manages the heavy ink loads required for transmissive viewing.
This contrasts sharply with reverse-printed clear films. With clear films, the ink is printed on the back surface and viewed through the transparent substrate. Front-surface printing requires entirely different density management because the ink sits directly on the viewing plane. It affects both ambient reflection and transmissive diffusion simultaneously, making the coating's ability to hold a sharp dot under heavy ink loads absolutely critical.
Choosing the right media and ink combination dictates the final transmissive density before you even send a file to the RIP. The interaction between the ink chemistry and the film's topcoat determines how much colorant you can lay down before the print fails.
Different ink chemistries behave uniquely when illuminated from behind. Understanding these differences helps you select the right hardware for the specific application.
Using dye ink light box film remains the gold standard for pure transmissive vibrancy. Dye colorants dissolve completely in their carrier fluid, allowing them to penetrate deeply into the microporous coating. This creates brilliant illuminated colors, ultra-smooth gradients, and an exceptionally wide color gamut with zero light scatter. However, dye inks are highly vulnerable to UV degradation. They require specialized overlaminates if exposed to sunlight or harsh indoor lighting over long periods.
Pigment, Latex, and UV-curable inks perform differently on direct print illuminated display media. UV inks cure on the surface of the film. They build physical thickness that inherently blocks light. To maintain translucency with UV inks, operators often have to mix clear ink into the profile or rely on specialized highly pigmented ink sets. Latex inks offer excellent flexibility and durability, but they require significant heat to cure. If you run too much heat on thin PET backlit film, the material warps, causing head strikes and ruined rolls. Pigment inks provide better UV stability than dyes, but they may lack the same extreme transmissive vibrancy depending on the pigment load and how the carrier chemistry interacts with the film coating.
Ink Chemistry | Transmissive Vibrancy | Durability / UV Resistance | Production Challenges on Backlit Film |
|---|---|---|---|
Aqueous Dye | Excellent (Highest Gamut) | Low (Requires lamination) | Coating must absorb high liquid volume quickly. |
Aqueous Pigment | Good | Medium to High | Pigment particles can scatter light if too thick. |
UV-Curable | Moderate to Good | High | Ink film thickness blocks light; requires clear ink mixing. |
Resin / Latex | Good | High | High curing temperatures can warp thin PET films. |
The film's microporous topcoat properties dictate the maximum ink load capacity. A high-quality coating absorbs heavy ink volumes rapidly without allowing the dots to spread excessively, coalesce, or pool on the surface. When you are pushing 250 percent total ink limits for a backlit profile, the coating does all the heavy lifting.
Absorption levels directly correlate with density variation. Under identical ink conditions, a density drop of 0.2 to 0.3 can occur on poorly coated media. The ink fails to anchor properly in the micropores, washing out the image and leading to unacceptable variation for color-critical brand work. You can verify this by printing a standard linearization target and reading the patches with a transmissive spectrophotometer. Poor coatings will show a plateau in density much earlier than premium coatings, regardless of how much ink the printer fires.
Establishing technical benchmarks before full-scale production prevents costly reprints and wasted material. Evaluating print performance requires specific calibration strategies tailored to transmissive viewing.
RIP software must be configured for appropriate layering to handle the single-pass light physics. You cannot just use a standard vinyl profile and increase the saturation slider. You need specific layering configurations built into the print mode.
Single-Layer High-Density: The printer slows down the carriage speed and fires larger drop sizes or multiple drops per pixel in a single pass. This works well for standard retail graphics but can struggle with extreme day/night shifts.
Double-Strike (2-Layer): The RIP instructs the printer to print the image, return to the origin, and print the exact same image directly on top of the first layer. This builds massive density but requires perfect media feed calibration to avoid registration blurring.
Color-White-Color (C-W-C): The ultimate solution for UV and some Latex platforms. The printer lays down a layer of color for the transmissive view, a layer of white ink to act as a diffuser, and a top layer of color for the ambient view. This maintains perfect accuracy whether the light box is on or off.
There is a precise threshold where additional ink layers cease to add transmissive density. Exceeding this limit causes adhesion failures, pooling, or curing issues, as the film's coating becomes fully saturated. Finding this limit requires printing ink restriction charts and evaluating them over a light source.
Balancing unlit and lit viewing conditions requires a framework of compromise. Day/Night RIP profiles are essential for single-layer or double-strike printing. These profiles adjust the ink curves to ensure the graphic does not look too dark during the day while maintaining enough density to avoid washing out at night. Building these profiles requires reading the color targets twice: once with a reflective spectrophotometer for the day view, and once with a transmissive spectrophotometer for the night view, then blending the ICC data.
Very dark colors often appear as solid, light-blocking black when illuminated. The heavy ink load stops light transmission entirely, killing all shadow detail. If you print a rich black built from 100C, 100M, 100Y, and 100K, it will look like a solid piece of plastic over a light box. Prepress technicians must lift black points and adjust mid-tone contrast to prevent muddy shadows.
Applying the Bright Value rule is highly effective on the prepress floor. Adjusting prepress art to utilize slightly brighter, cleaner color values yields superior, more vibrant transmissive results than simply boosting overall ink volumes. If a red looks washed out, do not just add magenta and yellow ink. Instead, adjust the file to a brighter red value and let the transmissive profile handle the density. Adding unnecessary ink just muddies the image and blocks the LED light.
Deploying front-printed light box graphics involves several production risks. Identifying these failure points early ensures consistent output and prevents installation disasters in the field.
Pinholes occur when small areas of the coating repel ink, allowing raw LED light to pierce through the dark areas of the print like tiny stars. This ruins the graphic instantly. Causes include dust on the roll, static charge on the film repelling the ink drops, improper curing temperatures causing the carrier fluid to boil, or exceeding the wet-ink limits of the coating.
Mitigation requires strict environmental controls. Keep the print room humidity between 40 and 60 percent to kill static. Adjust the pre-heaters and print-heaters to match the ink surface tension to the film coating. Wipe the media path and use anti-static bars on the printer carriage.
Inter-layer and face-to-glass adhesion issues also occur frequently. Physical contact between the printed film and the light box lens or acrylic panel can cause Newton rings. These look like oily, iridescent puddles where the film sticks to the glass. Surface adhesion failures inside the frame happen when the ink is not fully cured and off-gasses inside the enclosed light box, causing the print to stick to the acrylic and tear during changeouts. Ensure proper drying times and use spacer frames if necessary to keep the print off the glass.
The LED color temperature drastically shifts the perceived color density, contrast, and hue of the printed film. A 6500K cool white LED will make colors look vastly different than a 4000K warm white LED. Reds will look muted under 6500K, while blues will pop. Under 4000K, blues will look muddy and yellows will dominate.
Profiling the printer using a spectrophotometer reading taken directly over the specific light box LEDs, rather than standard D50 ambient lighting booths, is crucial for accuracy. If you build a profile on a 5000K light table and install the graphic in a 6500K light box, your Delta E values will fail immediately.
Maintaining density consistency across multiple printer fleets and media batches is challenging for large-scale retail rollouts. Standardized ICC profiles, strict environmental controls, and consistent media sourcing are required to ensure every light box looks identical across hundreds of locations. You must lock down the RIP settings, the heater temperatures, and the specific media SKU. Any deviation will result in mismatched light boxes across the retail environment.
Achieving optimal color density on backlit applications requires strict control over your production environment and prepress workflows. Over-inking leads to muddy daytime graphics and blocked shadows at night, while under-inking results in washed-out displays. Success relies on matching the right media coating with precise RIP calibration.
Standardize your LED testing environment to match the exact Kelvin temperature of the final display hardware.
Build custom transmissive ICC profiles using a dedicated transmissive spectrophotometer.
Implement a prepress checklist to lift black points and apply the Bright Value rule to all incoming art files.
Audit your media coatings by printing ink restriction charts to find the exact failure point of the microporous layer.
A: Transmissive light passes through the ink layer only once, effectively halving the perceived color density compared to reflective light. This single-pass phenomenon requires double-strike printing or custom backlit RIP profiles to lay down enough ink to maintain vibrancy when lit.
A: It depends on your RIP software and ink type. Optimal day/night viewing typically requires a high-density single pass, a double-strike (two layers), or a Color-White-Color sandwich configuration to balance unlit and illuminated density.
A: Heavy ink loads in dark areas block light transmission entirely. To fix this, you must lift black points, adjust mid-tone contrast, and shift to slightly brighter color values in prepress rather than just increasing overall ink volume.
A: While dye inks offer excellent transmissive vibrancy and smooth gradients, they lack UV stability. They will fade quickly outdoors unless protected by specialized UV-blocking overlaminates and weather-sealed enclosures.
A: The microporous coating controls ink dot spread and absorption capacity. Poor coatings cannot hold the heavy ink loads required for backlighting, leading to pooling, pinholes, and unacceptable density drops of 0.2 to 0.3.
A: Check the media for static charge and dust. Reduce total ink limits in your RIP, ensure proper curing and drying temperatures, clean the printer's media path, and manage frame-to-glass contact to prevent Newton rings.
