The most common point of failure in commercial illuminated displays is not the LED modules themselves, but the improper specification of the power supply unit. Mismatched voltage, inadequate wattage headroom, poor thermal management, and lack of built-in circuit protection lead to diode flickering, uneven illumination, premature hardware failure, and potential fire code violations. Achieving a stable, commercial-grade display requires evaluating power supplies through the lens of electrical load, physical connectivity, installation environment, and strict safety compliance. This guide breaks down the technical criteria for selecting the correct LED driver for your specific application, ensuring your installations remain reliable and code-compliant.
The 80% Rule is Mandatory: Always specify a power supply with a wattage capacity at least 20% higher than the total maximum draw of the LED modules to prevent overheating and ensure longevity.
Voltage Consistency Dictates Stability: 24VDC systems are generally superior to 12VDC systems for larger displays due to reduced voltage drop across longer cable runs.
Code Compliance is Non-Negotiable: In-wall installations require specific Class 2, UL-listed drivers housed inside accessible, fire-rated metal enclosures or access panels; standard plug-in adapters cannot be legally or safely hidden behind drywall.
Form Factor Must Match Function: The physical footprint and connection type must align with the application, whether it is a low-wattage slimline driver with barrel connectors for a double sided desktop light box or a heavy-duty hardwired unit with a dedicated distribution box for a large architectural display.
A power supply unit serves as the operational backbone of any illuminated display system. Utility grids provide high-voltage alternating current. LED diodes require stable, low-voltage direct current to function safely and efficiently. The power supply bridges this gap by stepping down the line voltage and rectifying the alternating current into a smooth direct current output. Without this precise conversion, the sensitive semiconductor materials inside the diodes would instantly fail. The quality of this conversion directly impacts the lifespan and visual output of every LED Light Box.
When working on-site, you quickly realize that not all power supplies are built the same. A standard off-the-shelf unit might provide the right voltage on paper, but under continuous load, it can introduce electrical noise. This noise translates directly into visual artifacts on the display. Specifying a dedicated LED driver ensures the internal circuitry is optimized for the specific demands of light-emitting diodes, providing a clean, filtered output that maximizes diode lifespan.
Illuminated displays typically utilize flexible LED strips or rigid modules. These components almost universally require constant voltage power supplies. Manufacturers design these strips with integrated resistors or onboard constant current integrated circuits. These tiny components regulate the current flow to individual diode segments. Supplying a steady 12V or 24V ensures these onboard components function exactly as engineered.
Applying a constant current driver to a constant voltage LED array introduces severe operational risks. Constant current drivers force a specific amperage through the circuit while allowing the voltage to fluctuate. This fluctuation overpowers the integrated resistors on standard LED strips. The resulting thermal runaway causes immediate diode burnout, severe color shifting, and permanent failure of the display infrastructure. Always verify that your selected driver explicitly states constant voltage output.
Specification | Constant Voltage (CV) | Constant Current (CC) |
|---|---|---|
Primary Application | LED strips, rigid modules, light boxes | High-power individual LEDs, downlights |
Output Characteristic | Fixed voltage (e.g., 12V, 24V), variable current | Fixed current (e.g., 350mA), variable voltage |
On-Board Regulation | Requires resistors on the LED strip | No resistors needed on the LED board |
Risk of Mismatch | Under-powering if capacity is too low | Immediate thermal runaway and diode burnout |
High-quality drivers include built-in safeguards to protect sensitive LED diodes from unpredictable electrical events. Utility power frequently experiences surges, sags, and spikes. A robust power supply acts as a firewall between the grid and the display.
Over-Voltage Protection prevents sudden spikes in utility power from passing through to the low-voltage side.
Over-Current Protection stops the system from drawing more amperage than the internal components can safely handle.
Short-Circuit Protection detects faults in the wiring. Premium units feature a hiccup mode, which automatically cuts power during a short and periodically tests the circuit, restoring normal operation once the fault clears.
Over-Temperature Protection monitors the internal heat of the driver. If ambient temperatures or heavy loads push the unit past its thermal limits, it will automatically shut down to prevent catastrophic failure or fire.

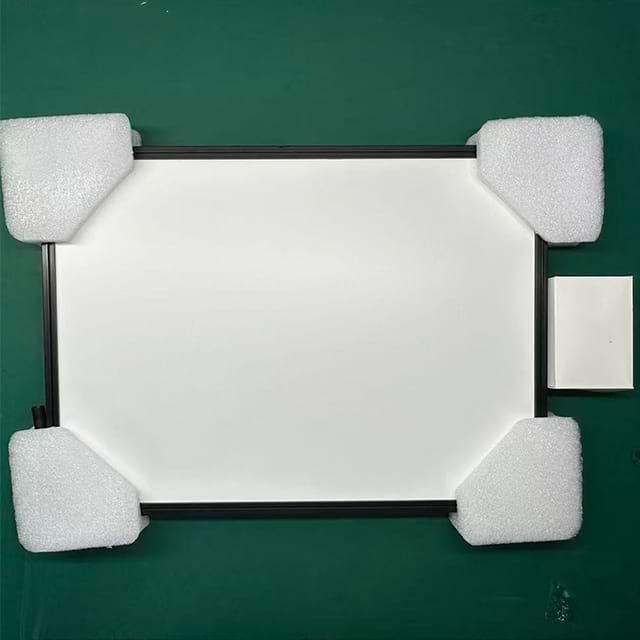

Visual consistency defines the success of a wall mounted advertising light box. A stable power supply guarantees zero flicker. Cheap drivers often pass residual alternating current ripple through to the direct current output. Human eyes might not consciously register high-frequency flicker, but it causes eye strain and ruins photographs or video recordings of the display. Furthermore, a highly regulated voltage output maintains a consistent color temperature across the entire graphic. Voltage fluctuations cause white LEDs to shift toward blue or yellow spectrums, compromising brand colors and overall aesthetic quality.
Determining the correct wattage capacity requires precise calculation. You must know the exact power draw of your LED modules. Manufacturers list this specification as watts per foot or watts per meter. Multiply this figure by the total length of the LED strip installed inside the frame. This calculation yields the total system wattage.
You cannot simply purchase a power supply that matches this exact number. You must implement the 20% headroom rule. Multiply your total system wattage by 1.2 to find the minimum required power supply rating. Running a power supply at maximum capacity generates excessive internal heat. This heat degrades the electrolytic capacitors inside the driver, accelerating thermal breakdown. Maintaining a 20% buffer ensures the unit operates efficiently, runs cooler, and lasts significantly longer.
For example, if you have 30 feet of LED strip drawing 3 watts per foot, your total load is 90 watts. Multiplying 90 by 1.2 gives you 108 watts. You would then specify a power supply rated for at least 120 watts to ensure adequate headroom and long-term stability.
Display systems generally operate on either 12VDC or 24VDC. Each voltage serves distinct applications. A 12V system offers shorter cut points on the LED strip. This allows for highly intricate, custom-shaped displays where precise lengths are necessary. However, 12V systems struggle with voltage drop over long distances.
For large architectural installations, 24VDC is the superior choice. Higher voltage pushes current more efficiently through the copper traces of the LED strip and the connecting wires. This efficiency handles higher electrical loads using thinner gauge wire. Most importantly, 24VDC mitigates dimming at the far end of large displays. When voltage drops too low, the LEDs furthest from the power source appear noticeably dimmer than those near the connection point. A 24V system maintains uniform brightness across expansive graphic areas.
System Voltage | Max Recommended Run Length (Before Voltage Drop) | Typical Application |
|---|---|---|
12VDC | 16 feet (5 meters) | Small retail signs, desktop displays |
24VDC | 32 feet (10 meters) | Large architectural wall displays |
Many environments require adjustable brightness levels. If your installation requires dimming, you must select a compatible dimmable power supply. Standard drivers cannot interpret dimming signals from wall switches. Pairing a non-dimmable driver with a phase-cut wall dimmer results in severe flickering, buzzing noises, and permanent hardware damage.
Evaluate the specific control protocol used in your space. Triac dimmers are common for standard wall switches. Commercial environments frequently utilize 0-10V or Pulse Width Modulation control systems. The power supply must explicitly match the chosen dimming protocol to ensure smooth, flicker-free adjustments from maximum brightness down to zero.
Plug-in adapters offer simplicity and speed. These units typically range from 12W to 36W and plug directly into standard wall outlets. They feature a single barrel connector output, allowing for immediate plug-and-play setup without specialized electrical knowledge. These adapters are ideal for temporary displays, small retail signage, or powering a double sided desktop light box.
Despite their convenience, plug-in adapters have strict limitations. They leave cables exposed, which detracts from a clean aesthetic. Their low wattage capacity restricts them to small-format applications. They also lack the robust mounting hardware necessary for permanent architectural integration.
Permanent commercial installations demand hardwired power supplies. These units range from 60W to well over 320W. They feature fully enclosed metal or heavy-duty plastic cases designed for rigorous environments. Instead of barrel connectors, they utilize integrated terminal blocks with screw terminals. This allows electricians to secure heavy-gauge wire directly to the unit, ensuring a solid, vibration-resistant connection.
Hardwired units require professional installation. They connect directly to the building's electrical infrastructure, eliminating exposed wall plugs. This approach provides the clean, integrated look required for high-end retail spaces, airports, and corporate lobbies.
Modern display frames are increasingly thin. Slimline and linear drivers are engineered specifically to fit inside the shallow aluminum extrusion frame of the display itself. This internal mounting hides all external components, simplifying the installation process on the wall.
However, internal mounting introduces thermal challenges. Trapping a power supply inside an enclosed aluminum box concentrates heat. To ensure longevity, the frame profile must include specialized passive cooling channels or ventilation slots. If the frame lacks adequate airflow, the internal driver will overheat, triggering its thermal protection circuits and shutting down the display.
Large displays require multiple runs of LED strips. Wiring all these strips back to a single power supply requires careful planning. Installers frequently use terminal block distribution bars. These bars take the main output from the power supply and split it into multiple parallel connections. This ensures each LED strip receives a direct connection to the power source, minimizing voltage drop.
For multi-display rollouts, centralized power distribution boxes offer a cleaner solution. A single utility closet can house several high-capacity power supplies. Heavy-gauge low-voltage wire then runs from this central location out to the individual displays. This centralizes maintenance and keeps heavy electrical components away from the customer-facing environment.
A common error among contractors is burying standard power supplies directly behind drywall. This practice violates safety codes and creates a severe fire hazard. Power supplies generate heat during operation. When trapped inside an insulated wall cavity without airflow, this heat accumulates rapidly.
National Electrical Code compliance dictates strict rules for in-wall installations. Power supplies must be housed in an approved, accessible metal enclosure. A standard solution involves a flush-mount metal access box with a ventilated door. This enclosure allows heat to dissipate safely into the room while providing technicians with immediate access for future maintenance. Never seal a power supply permanently behind a wall surface.
Safety certifications are critical for commercial installations. A UL listing guarantees the device has undergone rigorous independent testing for fire and electrical safety. Unlisted devices pose massive liability risks.
Class 2 power supplies offer an additional layer of safety. These units strictly limit their output to prevent electric shock and fire initiation. For 12V systems, Class 2 limits output to 60W. For 24V systems, the limit is 96W. If a short circuit occurs on a Class 2 circuit, the energy level is too low to start a fire.
Powering high-wattage displays requires strategic planning. You can utilize multi-channel power supplies, where a single unit provides multiple distinct Class 2 outputs. Alternatively, you can use a single higher-rated Class 1 supply. However, Class 1 circuits require strict adherence to heavy-duty conduit and metal junction box requirements, significantly increasing installation complexity.
The installation environment dictates the required Ingress Protection rating of the power supply. IP ratings define how well the unit resists dust and moisture. For indoor, climate-controlled environments, IP20 or IP30 ratings provide sufficient protection against solid objects and basic dust accumulation.
Outdoor installations or high-humidity environments require IP65 or IP67 ratings. These units feature fully potted electronics, where the internal circuitry is encased in a solid block of thermal epoxy. This prevents any moisture ingress. Additionally, all cable junctions must utilize weather-sealed, waterproof connectors to maintain the integrity of the system.
Procurement teams often attempt to reduce initial project costs by selecting generic, unbranded drivers. This approach inevitably leads to higher long-term expenses. Commercial-grade units utilize premium internal components designed for continuous operation. Budget units rely on cheap electrolytic capacitors that are highly susceptible to dry-out when exposed to heat.
Furthermore, budget drivers suffer from lower efficiency ratings. An inefficient power supply converts a larger percentage of electrical energy into waste heat rather than usable low-voltage power. This excess heat stresses the internal components and surrounding architectural materials. Finally, generic units frequently lack recognized agency safety marks. Installing uncertified electrical equipment voids insurance policies and exposes facility managers to severe liability in the event of an electrical fire.
Investing in a premium, certified power supply ensures the display operates reliably for years, protecting the initial investment in the LED modules and the custom frame hardware. The upfront cost of a premium, UL-listed power supply is negligible compared to the labor cost of a technician rolling a truck to replace a failed driver mounted behind a complex architectural display.
The stability of an illuminated display is entirely dependent on a power supply that provides adequate wattage headroom, matches the system's voltage, and operates safely within its thermal limits. Cutting corners on power conversion guarantees visual degradation and hardware failure. A systematic approach to selection eliminates these risks.
Calculate the total LED wattage based on strip length and add a strict 20% safety buffer to determine minimum driver capacity.
Select 24VDC systems for large architectural runs to prevent voltage drop, reserving 12VDC for small desktop units.
Verify the physical dimensions and ventilation requirements of the driver if mounting inside the aluminum extrusion frame.
Confirm the power supply carries a UL listing and meets Class 2 requirements if installing within wall cavities.
Consult a licensed electrician to finalize hardwired connections and ensure full compliance with local building codes.
A: No, not directly behind drywall. It must be installed inside a code-compliant, fire-rated enclosure with a ventilated, accessible door—such as a dedicated metal access panel—to meet NEC regulations and prevent fire hazards.
A: Flickering is typically caused by an underpowered power supply, a lack of built-in over-current protection, a mismatch between a dimmable wall switch and a non-dimmable driver, or severe voltage drop over long wire runs.
A: While often used interchangeably, an LED driver specifically regulates power to LEDs (either constant voltage or constant current) and usually features specific protection circuits (SCP, OVP, OCP) to prevent diode damage, whereas a generic power supply simply provides a fixed output voltage without specific LED protection circuitry.
A: Multiply the wattage per foot/meter of your LED strip by the total length used, then multiply that total by 1.2 to ensure a 20% safety buffer.
A: 12V is suitable for small, low-wattage displays like a double sided desktop light box. 24V is highly recommended for larger wall-mounted displays to minimize voltage drop and maintain consistent brightness across the entire screen.
A: Yes, provided the power supply's total wattage capacity (minus the 20% buffer) exceeds the combined wattage draw of all connected light boxes.
